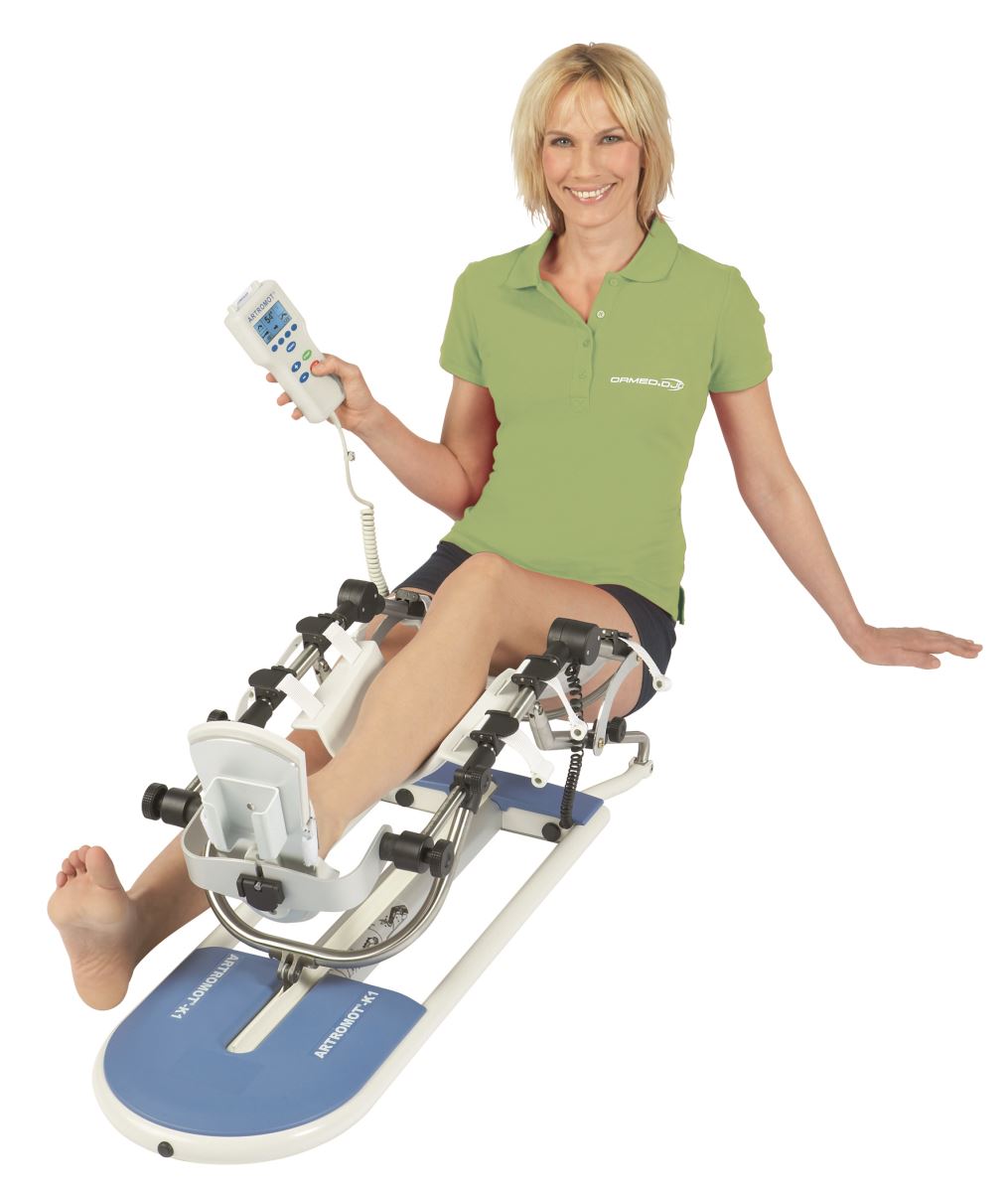

ARTROMOT-K1 combines the best features of the time-tested ARTROMOT knee machine with state-of-the-art, trend-setting technology
ARTROMOT-K1 was developed for the demanding use in clinics and home care/rental programs
Using the ARTROMOT-K1 is made easy by intuitive operation of the handheld programming unit with self explanatory symbols
ARTROMOT-K1 Classic - Features:
-
Pauses (extension and flexion) 0 - 59 s 1 - 59 min
-
Speed 5% - 100 %
-
Key lock function To prevent accidental changes of the parameter settings
ARTROMOT-K1 Standard - Additional features:
-
Timer 1 - 59 minutes / 1 - 24 hours / continuous operation
-
Pauses - (extension and/or flexion) 0 - 59 seconds / 1 - 59 minutes
-
Reverse on load in steps 1 - 25 / patient safety feature
-
Warm up protocol Gradual progression to the maximum range of motion
-
Total therapy time Added sum of thetherapy sessions
-
New patient Activates the default settings for new patients
-
Transport setting Moves the carriage to the transport position
-
Service menu
ARTROMOT-K1 Comfort - Additional features:
-
EROM repeat (extension or flexion) Exercises are performed at a higher rate in the end range of motion
-
Stretching (extension or flexion)- For gradual and smooth increase of the range of motion
-
Therapy documentation Graphic representation of the overall treatment cycle
-
EMS control For an optimal combination of CPM treatment and electrotherapy
-
Workout protocol- Combines various functions of the comfort model in one protocol
-
Comfort protocol Warm up in the EROM of extension and flexion
